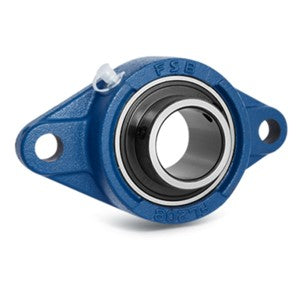

The UCFLX08-24 flanged ball bearing unit with cast iron housing and steel insert delivers strength, reliability, and easy mounting for machinery use.
Key specifications
| (d) Bore diameter | 38.1mm |
| (J) Centre distance between bolt holes | 148mm |
| (N) Bolt hole diameter | 14mm |
| (T) Overall height | 49.2mm |
| (H) Overall length | 179mm |
| Housing type | Flanged |
| No of bolt holes | 2 |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
| (d) Bore diameter | 38.1mm |
| (J) Centre distance between bolt holes | 148mm |
| (N) Bolt hole diameter | 14mm |
| (T) Overall height | 49.2mm |
| (H) Overall length | 179mm |
| Housing type | Flanged |
| No of bolt holes | 2 |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
