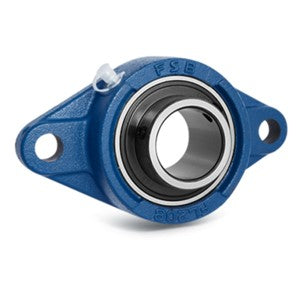

The UCFLX07 flanged ball bearing unit features a durable cast iron housing and steel insert, providing long-lasting reliability in tough conditions.
Key specifications
| (d) Bore diameter | 35mm |
| (J) Centre distance between bolt holes | 144mm |
| (N) Bolt hole diameter | 14mm |
| (T) Width, total | 51.2mm |
| (L) Overall length | 105mm |
| (H) Overall height | 171mm |
| Housing type | Flanged |
| No of bolt holes | 2 |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
| (d) Bore diameter | 35mm |
| (J) Centre distance between bolt holes | 144mm |
| (N) Bolt hole diameter | 14mm |
| (T) Width, total | 51.2mm |
| (L) Overall length | 105mm |
| (H) Overall height | 171mm |
| Housing type | Flanged |
| No of bolt holes | 2 |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
