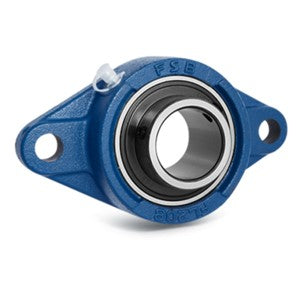

The UCFL209 flanged ball bearing unit combines a strong cast iron housing with a steel insert, delivering stability and performance in industrial machinery.
Key specifications
| (d) Bore diameter | 45mm |
| (J) Centre distance between bolt holes | 148mm |
| (N) Bolt hole diameter | 19mm |
| (T) Width, total | 52.2mm |
| (L) Overall length | 108mm |
| (H) Overall height | 188mm |
| Housing type | Flanged |
| No of bolt holes | 2 |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
| (d) Bore diameter | 45mm |
| (J) Centre distance between bolt holes | 148mm |
| (N) Bolt hole diameter | 19mm |
| (T) Width, total | 52.2mm |
| (L) Overall length | 108mm |
| (H) Overall height | 188mm |
| Housing type | Flanged |
| No of bolt holes | 2 |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
