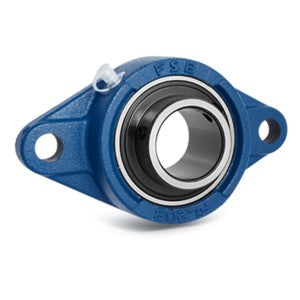

The UCFL208-24 flanged ball bearing unit features a robust cast iron housing and steel insert, ensuring smooth operation and durability in equipment.
Key specifications
| (d) Bore diameter | 38.1mm |
| (J) Centre distance between bolt holes | 144mm |
| (N) Bolt hole diameter | 16mm |
| (T) Overall height | 51.2mm |
| (L) Overall width | 100mm |
| (H) Overall length | 175mm |
| Housing type | Flanged |
| No of bolt holes | 2 |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
| (d) Bore diameter | 38.1mm |
| (J) Centre distance between bolt holes | 144mm |
| (N) Bolt hole diameter | 16mm |
| (T) Overall height | 51.2mm |
| (L) Overall width | 100mm |
| (H) Overall length | 175mm |
| Housing type | Flanged |
| No of bolt holes | 2 |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
