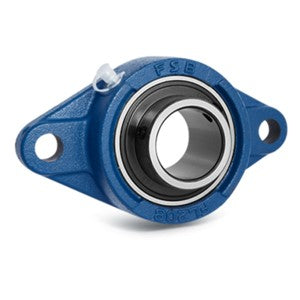

The UCFL207 flanged ball bearing unit with cast iron housing and steel insert ensures reliable operation, durability, and simple mounting in machinery.
Key specifications
| (d) Bore diameter | 35mm |
| (J) Centre distance between bolt holes | 130mm |
| (N) Bolt hole diameter | 16mm |
| (T) Overall height | 44.4mm |
| (L) Overall width | 90mm |
| (H) Overall length | 161mm |
| Housing type | Flanged |
| No of bolt holes | 2 |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
| (d) Bore diameter | 35mm |
| (J) Centre distance between bolt holes | 130mm |
| (N) Bolt hole diameter | 16mm |
| (T) Overall height | 44.4mm |
| (L) Overall width | 90mm |
| (H) Overall length | 161mm |
| Housing type | Flanged |
| No of bolt holes | 2 |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
