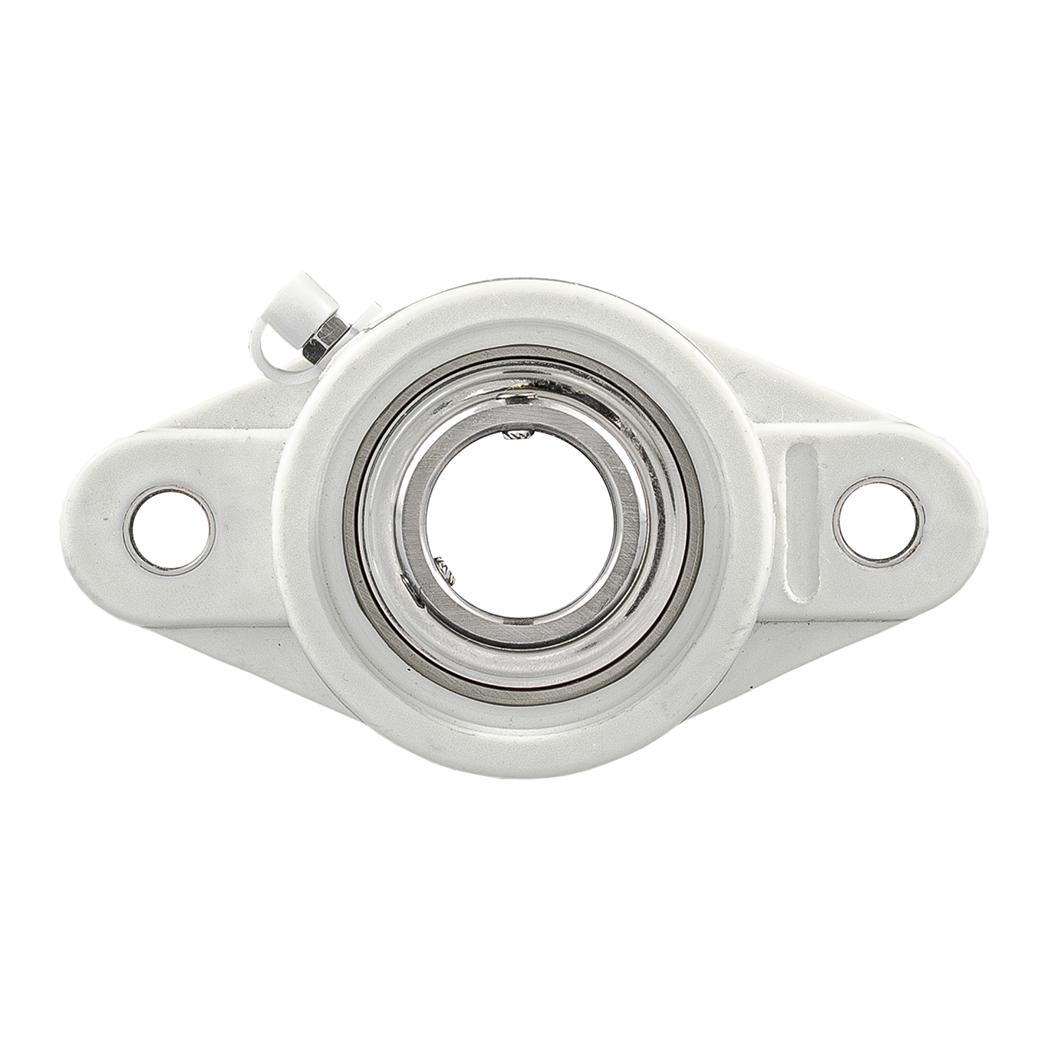

The UCFL206 SS flanged ball bearing unit with durable plastic housing and a stainless steel insert offers excellent corrosion resistance, lightweight strength, and long-lasting performance in demanding environments.
Key specifications
| (d) Bore diameter | 30mm |
| (J) Centre distance between bolt holes | 117mm |
| (N) Bolt hole diameter | 16mm |
| (T) Overall height | 40.2mm |
| (L) Overall width | 80mm |
| (H) Overall length | 147.5mm |
| Housing type | Flanged |
| No of bolt holes | 2 |
| Material, housing | Plastic |
| Material, bearing | Stainless Steel |
| (d) Bore diameter | 30mm |
| (J) Centre distance between bolt holes | 117mm |
| (N) Bolt hole diameter | 16mm |
| (T) Overall height | 40.2mm |
| (L) Overall width | 80mm |
| (H) Overall length | 147.5mm |
| Housing type | Flanged |
| No of bolt holes | 2 |
| Material, housing | Plastic |
| Material, bearing | Stainless Steel |
