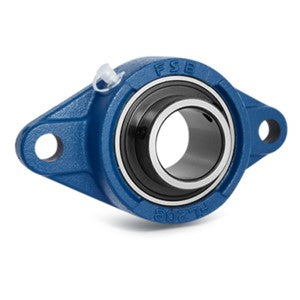

The UCFL205 flanged ball bearing unit offers a cast iron housing with steel insert, delivering reliability, strength, and long-lasting performance.
Key specifications
| (d) Bore diameter | 25mm |
| (J) Centre distance between bolt holes | 99mm |
| (N) Bolt hole diameter | 16mm |
| (T) Overall height | 35.7mm |
| (L) Overall width | 68mm |
| (H) Overall length | 130mm |
| Housing type | Flanged |
| No of bolt holes | 2 |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
| (d) Bore diameter | 25mm |
| (J) Centre distance between bolt holes | 99mm |
| (N) Bolt hole diameter | 16mm |
| (T) Overall height | 35.7mm |
| (L) Overall width | 68mm |
| (H) Overall length | 130mm |
| Housing type | Flanged |
| No of bolt holes | 2 |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
