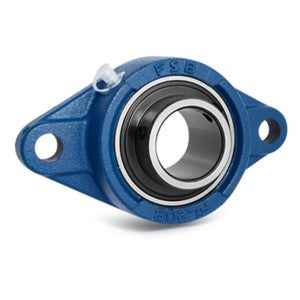

The UCFL204 flanged ball bearing unit features a cast iron housing with a steel insert, offering strong support and easy installation in machinery.
Key specifications
| (d) Bore diameter | 20mm |
| (J) Centre distance between bolt holes | 90mm |
| (N) Bolt hole diameter | 12mm |
| (T) Overall height | 33.3mm |
| (L) Overall width | 60mm |
| (H) Overall length | 113mm |
| Housing type | Flanged |
| No of bolt holes | 2 |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
| (d) Bore diameter | 20mm |
| (J) Centre distance between bolt holes | 90mm |
| (N) Bolt hole diameter | 12mm |
| (T) Overall height | 33.3mm |
| (L) Overall width | 60mm |
| (H) Overall length | 113mm |
| Housing type | Flanged |
| No of bolt holes | 2 |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
