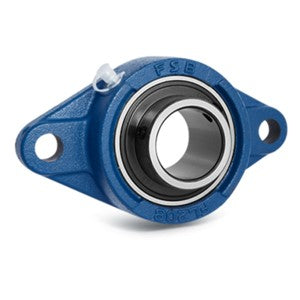

The UCFL204-12 flanged ball bearing unit includes a durable cast iron housing and steel insert, designed for dependable, smooth-running operation.
Key specifications
| (d) Bore diameter | 19.05mm |
| (J) Centre distance between bolt holes | 90mm |
| (N) Bolt hole diameter | 12mm |
| (T) Overall height | 33.3mm |
| (L) Overall width | 60mm |
| (H) Overall length | 113mm |
| Housing type | Flanged |
| No of bolt holes | 2 |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
| (d) Bore diameter | 19.05mm |
| (J) Centre distance between bolt holes | 90mm |
| (N) Bolt hole diameter | 12mm |
| (T) Overall height | 33.3mm |
| (L) Overall width | 60mm |
| (H) Overall length | 113mm |
| Housing type | Flanged |
| No of bolt holes | 2 |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
