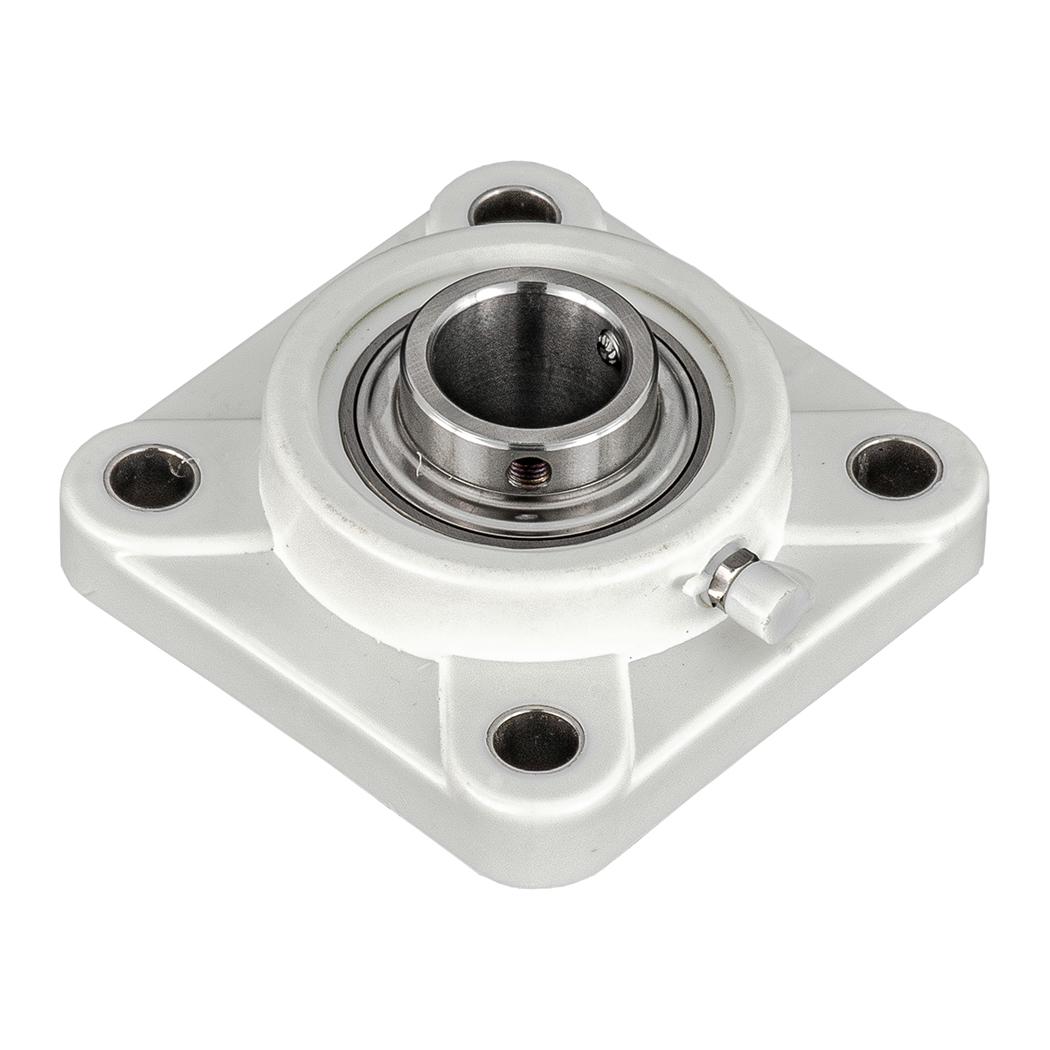

The UCF206 SS flanged ball bearing unit with durable plastic housing and a stainless steel insert offers excellent corrosion resistance, lightweight strength, and long-lasting performance in demanding environments.
Key specifications
| Bore Diameter | 30 mm |
| Centre distance between bolt holes | 83 mm |
| Attachment bolt diameter | 12 mm |
| Width, total | 40.2 mm |
| Overall length | 108 mm |
| Housing type | Flanged |
| No of bolt holes | 4 |
| Material, housing | Plastic |
| Material, bearing | Stainless steel |
| Bore Diameter | 30 mm |
| Centre distance between bolt holes | 83 mm |
| Attachment bolt diameter | 12 mm |
| Width, total | 40.2 mm |
| Overall length | 108 mm |
| Housing type | Flanged |
| No of bolt holes | 4 |
| Material, housing | Plastic |
| Material, bearing | Stainless steel |
