Product Description:

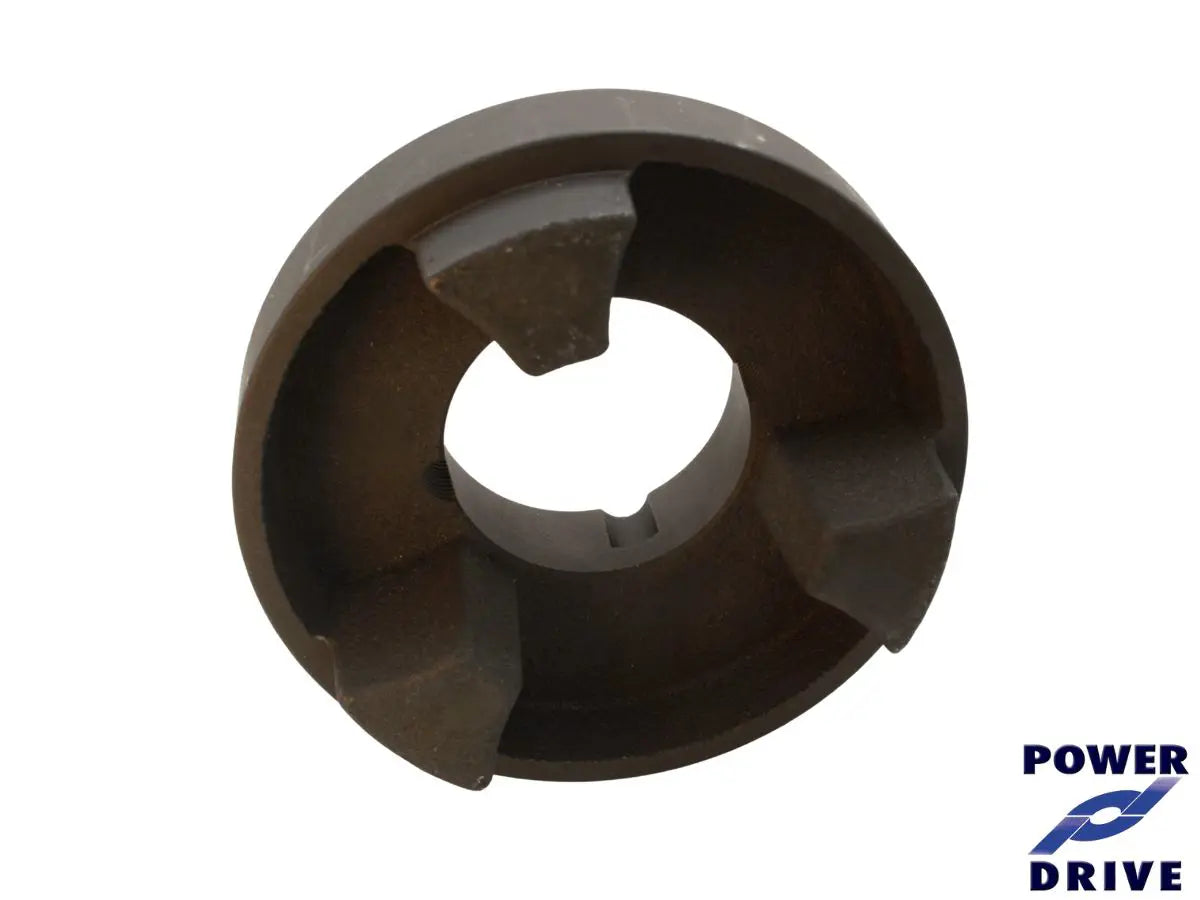

The HRC70H Coupling Flange (1008) is a compact, high-strength steel flange designed for use with HRC70 rubber inserts in flexible coupling assemblies. Engineered for precise shaft alignment and effective torque transmission, it minimizes vibration and compensates for slight misalignments in compact power transmission systems.

Product Specifications & Dimensions:

• Flange Size: 70
• Outer Diameter (D): 69 mm
• Bush Size: 1008
• Compatible Products: HRC70 Insert & HRC70F Coupling Flange
• Complete Set: HRC70H Coupling Flange, HRC70 Insert & HRC70F Coupling Flange

Features and Benefits:

• Compact and durable steel construction for smaller drives
• Machined for precise fit with HRC70 rubber inserts
• Ensures smooth, reliable torque transmission
• Minimizes vibration and handles minor shaft misalignment
• Compatible with all standard HRC70 flange types (F, H, B)
• Easy taper bush mounting for fast installation and maintenance

Applications and Compatibility:
Ideal for:

• Small motors and gearboxes
• Pumps and compact conveyors
• Ventilation and automation systems
• Light-duty processing equipment

Fully compatible with HRC70 rubber inserts and coupling components from major manufacturers. Suitable for new equipment builds or replacing worn flanges in existing HRC70 coupling assemblies.
