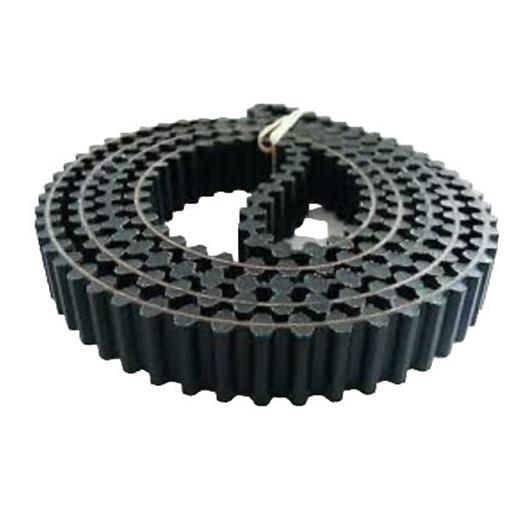

The 2800-8M-30 double sided HTD timing belt delivers strength, durability, and smooth performance for a wide range of power drive systems.
Key specifications
Pitch Length
2800 mm (350 teeth)
Pitch
8 mm (HTD 8M profile)
Tooth Count
350
Cord Material
Fiberglass
Belt Material
Neoprene with nylon-facing teeth
Temperature Range
–30 °C to +90 °C
Profile Type
HTD 8M, double-sided
Pitch Length
2800 mm (350 teeth)
Pitch
8 mm (HTD 8M profile)
Tooth Count
350
Cord Material
Fiberglass
Belt Material
Neoprene with nylon-facing teeth
Temperature Range
–30 °C to +90 °C
Profile Type
HTD 8M, double-sided
• Double-sided HTD tooth design ensures synchronous power transfer on both belt surfaces
• Ideal for reversing drives, serpentine belt configurations, and compact pulley systems
• Fiberglass cords offer high tensile strength and low elongation for durability
• Neoprene with nylon-facing teeth resists wear, heat, and noise
• Maintenance-free design requires no lubrication
• Complies with ISO 5296 and RoHS/REACH standards
• Reliable performance in a wide temperature range and harsh environments
• Conveyor and material handling equipment
• Packaging, printing, and textile machinery
• Robotic automation and motion control systems
• CNC tools, indexing drives, and precision equipment
• Pumps, compressors, and reversing transmission setups
• Lawn tractors, ride-on mowers, and garden equipment with dual-pulley cutting decks
