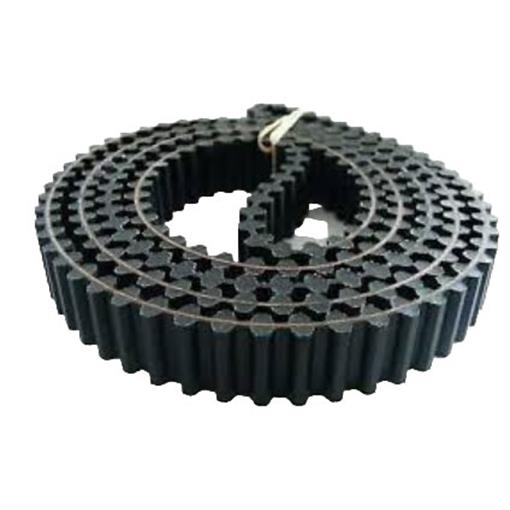

The 2600-8M-20 double sided HTD timing belt provides reliable torque transfer, reduced slippage, and long service life in demanding machinery.
Key specifications
Pitch Length
2600 mm (325 teeth)
Pitch
8 mm (HTD 8M profile)
Width
20 mm
Tooth Count
325
Cord Material
Fiberglass
Belt Material
Neoprene with nylon-facing teeth
Temperature Range
–30 °C to +90 °C
Profile Type
HTD 8M, double-sided
Pitch Length
2600 mm (325 teeth)
Pitch
8 mm (HTD 8M profile)
Width
20 mm
Tooth Count
325
Cord Material
Fiberglass
Belt Material
Neoprene with nylon-facing teeth
Temperature Range
–30 °C to +90 °C
Profile Type
HTD 8M, double-sided
• Double-sided HTD tooth design for synchronous engagement on both surfaces
• Suitable for reversing drives, compact multi-shaft systems, and serpentine layouts
• Fiberglass cords provide strong tensile strength and low elongation
• Durable neoprene with nylon tooth fabric resists wear and heat
• Maintenance-free operation with no need for lubrication
• Complies with ISO 5296 standards and RoHS/REACH regulations
• Reliable performance in a broad temperature range and harsh environments
• Conveyor systems and material handling machinery
• Packaging, printing, and textile equipment
• Robotic automation and precision positioning devices
• CNC machinery, indexing drives, and motion control
• Pumps, compressors, and reversing belt transmissions
• Lawn tractors, ride-on mowers, and outdoor garden equipment with dual-pulley deck systems
