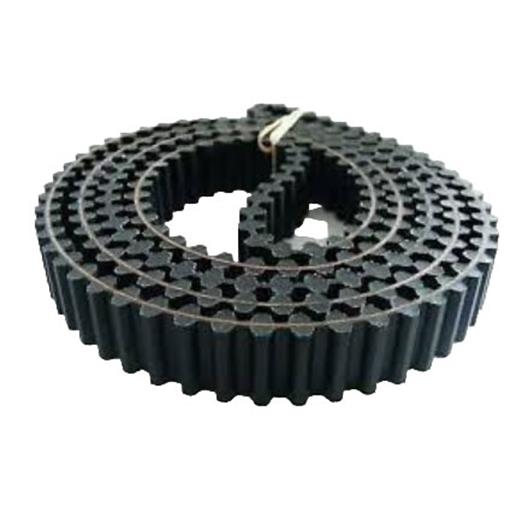

The 2000-8M-25 double sided HTD timing belt ensures strong, consistent performance with long-lasting reliability in machinery drive systems.
Key specifications
Pitch Length
2000 mm (250 teeth)
Pitch
8 mm (HTD 8M profile)
Width
25 mm
Tooth Count
250
Cord Material
Fiberglass
Belt Material
Neoprene with nylon-facing teeth
Temperature Range
–30 °C to +90 °C
Profile Type
HTD 8M, double-sided
Pitch Length
2000 mm (250 teeth)
Pitch
8 mm (HTD 8M profile)
Width
25 mm
Tooth Count
250
Cord Material
Fiberglass
Belt Material
Neoprene with nylon-facing teeth
Temperature Range
–30 °C to +90 °C
Profile Type
HTD 8M, double-sided
• Dual-sided HTD tooth design for synchronous drive on both belt surfaces
• Ideal for reversing drives and serpentine belt layouts
• High-strength fiberglass cords for minimal elongation and long service life
• Durable neoprene body with nylon tooth fabric for wear resistance
• Maintenance-free, no lubrication required
• ISO 5296 standard compliant and RoHS/REACH certified
• Reliable operation across a wide temperature range
• Conveyor and material handling systems
• Packaging, printing, and textile machinery
• Robotic and automated equipment
• CNC machines and indexing drives
• Pumps, compressors, and reversing mechanisms
• Lawn tractors, ride-on mowers, and outdoor garden equipment with dual-pulley setups
