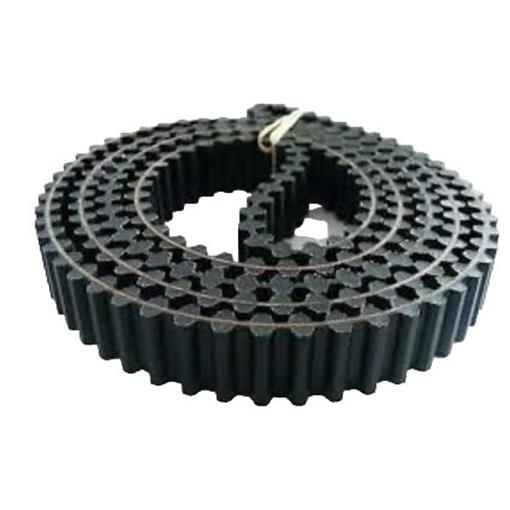

2000-8M-20 Double Sided HTD Timing Belt

Pitch Length: 2000 mm (250 teeth)
Pitch: 8 mm (HTD 8M profile)
Width: 20 mm
Tooth Count: 250
Cord Material: Fiberglass
Belt Material: Neoprene with nylon-facing teeth
Temperature Range: –30 °C to +90 °C
Profile Type: HTD 8M, double-sided

• Double-sided HTD tooth profile supports synchronized drive on both belt surfaces
• Ideal for reversing drives, compact pulley systems, and serpentine routing
• Maintenance-free design reduces downtime and eliminates lubrication needs
• High-strength fiberglass cords resist stretching and increase service life
• Durable neoprene body with nylon-faced teeth minimizes wear and noise
• Manufactured to ISO 5296 standards; RoHS and REACH compliant
• Performs consistently in variable industrial and outdoor environments

• Conveyors, indexing tables, and material handling systems
• Packaging, printing, and textile machines
• Robotic arms and automation drives
• CNC machinery and motion control applications
• Pumps, compressors, and reversing transmission setups
• Lawn tractors, ride-on mowers, and outdoor garden equipment with dual-pulley cutting decks
