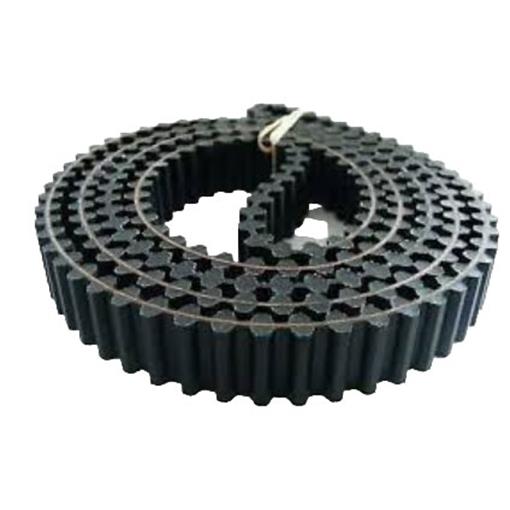

The 2000-8M-16 double sided HTD timing belt delivers reliable performance, long wear resistance, and precision drive capability for equipment.
Key specifications
Pitch Length
2000 mm (250 teeth)
Pitch
8 mm (HTD 8M profile)
Width
16 mm
Tooth Count
250
Cord Material
Fiberglass
Belt Material
Neoprene with nylon-facing teeth
Temperature Range
–30 °C to +90 °C
Profile Type
HTD 8M, double-sided
Pitch Length
2000 mm (250 teeth)
Pitch
8 mm (HTD 8M profile)
Width
16 mm
Tooth Count
250
Cord Material
Fiberglass
Belt Material
Neoprene with nylon-facing teeth
Temperature Range
–30 °C to +90 °C
Profile Type
HTD 8M, double-sided
• Dual-tooth design enables power transmission on both belt surfaces
• Suitable for reversing drives, serpentine layouts, and compact pulley systems
• Maintenance-free performance with no lubrication required
• High tensile strength fiberglass cords for minimal stretch and long service life
• Neoprene body with nylon-faced teeth resists heat, wear, and deformation
• Compliant with ISO 5296 and meets RoHS/REACH safety standards
• Operates reliably in a wide range of industrial and outdoor temperatures
• Conveyor systems and material transport applications
• Packaging, printing, and textile machinery
• Robotic motion systems and automated equipment
• CNC tools, indexing drives, and motion control setups
• Pumps, fans, and reversing belt drives
• Lawn tractors, ride-on mowers, and garden equipment with dual-pulley decks
