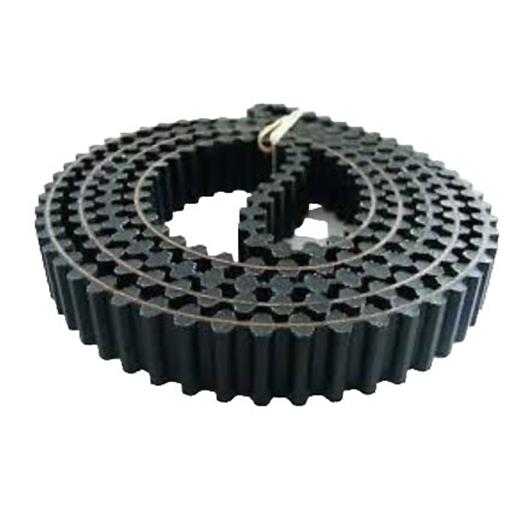

The 1800-8M-25 double sided HTD timing belt ensures dependable torque transfer, durability, and consistent operation in drive systems.
Key specifications
Pitch Length
1800 mm (225 teeth)
Pitch
8 mm (HTD 8M profile)
Width
25 mm
Tooth Count
225
Cord Material
Fiberglass
Belt Material
Neoprene with nylon-facing teeth
Temperature Range
–30 °C to +90 °C
Profile Type
HTD 8M, double-sided
Pitch Length
1800 mm (225 teeth)
Pitch
8 mm (HTD 8M profile)
Width
25 mm
Tooth Count
225
Cord Material
Fiberglass
Belt Material
Neoprene with nylon-facing teeth
Temperature Range
–30 °C to +90 °C
Profile Type
HTD 8M, double-sided
• Dual-sided HTD tooth profile allows synchronous drive on both belt surfaces
• Ideal for reversing drives and dual-pulley setups in compact spaces
• Fiberglass tension cords offer high strength and dimensional stability
• Neoprene body resists wear, aging, and heat; nylon tooth fabric reduces friction
• Maintenance-free design eliminates the need for lubrication
• Conforms to ISO 5296 standards and meets RoHS and REACH compliance
• Reliable performance across a broad temperature range
• Material handling and conveyor systems
• Packaging, printing, and textile machinery
• Robotic motion and automated equipment
• CNC tools, indexing machines, and power transmission drives
• Pumps, fans, and reversing mechanisms
• Lawn tractors, ride-on mowers, and outdoor garden equipment with dual-pulley deck configurations
