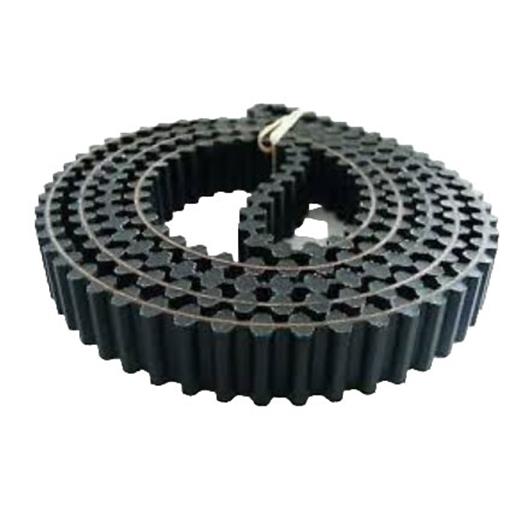

1800-8M-20 Double Sided HTD Timing Belt

Pitch Length: 1800 mm (225 teeth)
Pitch: 8 mm (HTD 8M profile)
Width: 20 mm
Tooth Count: 225
Cord Material: Fiberglass
Belt Material: Neoprene with nylon-facing teeth
Temperature Range: –30 °C to +90 °C
Profile Type: HTD 8M, double-sided

• Dual-sided tooth engagement for synchronous drive on both sides
• Ideal for compact multi-shaft systems and reversing applications
• Fiberglass cord reinforcement ensures tensile strength and minimal elongation
• Neoprene construction with nylon-facing teeth resists wear and heat
• Maintenance-free, clean-running belt with no lubrication required
• Complies with ISO 5296 standards and meets RoHS/REACH directives
• Performs reliably in a wide range of industrial temperatures

• Industrial conveyor and indexing systems
• Packaging, textile, and printing machinery
• Robotic automation and precision handling systems
• CNC machines and mechanical positioning devices
• Pumps, compressors, and reversing belt drives
• Ride-on lawnmowers, garden tractors, and outdoor power equipment with dual-pulley cutting decks
