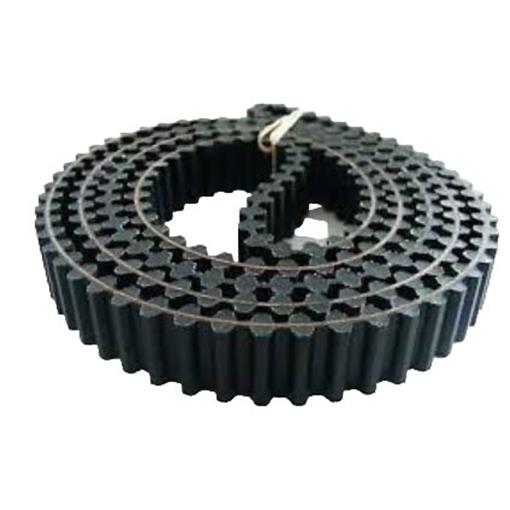

The 1800-8M-16 double sided HTD timing belt delivers durable performance, precision drive, and lasting reliability for industrial equipment.
Key specifications
Pitch Length
1800 mm (225 teeth)
Pitch
8 mm (HTD 8M profile)
Width
16 mm
Tooth Count
225
Cord Material
Fiberglass
Belt Material
Neoprene with nylon-facing teeth
Temperature Range
–30 °C to +90 °C
Profile Type
HTD 8M, double-sided
Pitch Length
1800 mm (225 teeth)
Pitch
8 mm (HTD 8M profile)
Width
16 mm
Tooth Count
225
Cord Material
Fiberglass
Belt Material
Neoprene with nylon-facing teeth
Temperature Range
–30 °C to +90 °C
Profile Type
HTD 8M, double-sided
• Dual-sided tooth profile supports bi-directional synchronous power transmission
• Suitable for reversing drives and multi-pulley configurations
• Clean, maintenance-free operation with no lubrication required
• Reinforced with fiberglass cords for stretch resistance and long belt life
• Neoprene body with nylon-faced teeth for excellent wear and heat resistance
• Compliant with ISO 5296 standards and RoHS/REACH environmental directives
• Delivers consistent performance across a wide temperature range
• Conveyor and indexing systems
• Packaging, labeling, and printing machinery
• Robotic arms and automation systems
• CNC machines and motion control equipment
• Pumps, compressors, and reversing mechanisms
• Lawn tractors, ride-on mowers, and garden equipment with dual-pulley decks
