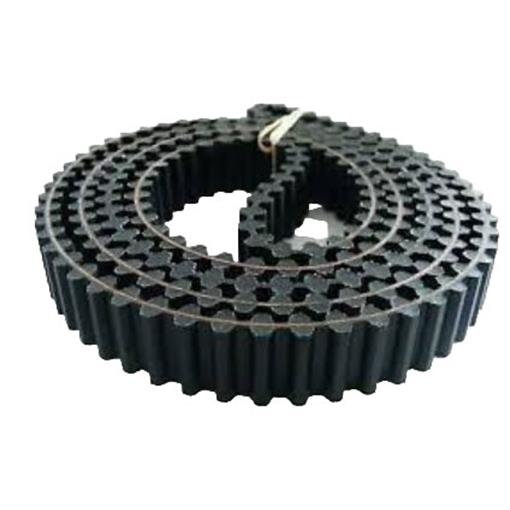

The 1760-8M-20 double sided HTD timing belt provides smooth operation, durability, and consistent reliability for power transmission systems.

Key specifications

Pitch Length1760 mm (225 teeth)
Pitch8 mm (HTD 8M profile)
Width20 mm
Tooth Count220
Cord MaterialFiberglass
Belt MaterialNeoprene with nylon-facing teeth
Temperature Range–30 °C to +90 °C
Profile TypeHTD 8M, double-sided
Pitch Length1760 mm (225 teeth)
Pitch8 mm (HTD 8M profile)
Width20 mm
Tooth Count220
Cord MaterialFiberglass
Belt MaterialNeoprene with nylon-facing teeth
Temperature Range–30 °C to +90 °C
Profile TypeHTD 8M, double-sided
• Dual-sided tooth profile enables synchronous power transmission in both directions
• Ideal for reversing drives and compact multi-pulley configurations
• Maintenance-free belt requires no lubrication, reducing downtime
• High-strength fiberglass cords resist stretch and ensure dimensional stability
• Abrasion-resistant neoprene with nylon tooth fabric for extended belt life
• Compliant with ISO 5296 and environmentally safe (RoHS & REACH compliant)
• Operates reliably across a wide temperature range in varied environments
• Industrial conveyor systems
• Packaging, labeling, and printing machinery
• Robotics and automated material handling equipment
• CNC machines and precision indexing devices
• Pumps, compressors, and bi-directional belt drives
• Lawn tractors and ride-on mowers with dual-pulley cutting decks

1760-8M-20 Double Sided HTD Timing Belt
