The 1600-8M-20 double sided HTD timing belt offers precision power transfer, long-lasting durability, and efficient performance in machinery.

Key specifications

Pitch Length	1600 mm (225 teeth)
Pitch	8 mm (HTD 8M profile)
Width	20 mm
Tooth Count	200
Cord Material	Fiberglass
Belt Material	Neoprene with nylon-facing teeth
Temperature Range	–30 °C to +90 °C
Profile Type	HTD 8M, double-sided

Pitch Length	1600 mm (225 teeth)
Pitch	8 mm (HTD 8M profile)
Width	20 mm
Tooth Count	200
Cord Material	Fiberglass
Belt Material	Neoprene with nylon-facing teeth
Temperature Range	–30 °C to +90 °C
Profile Type	HTD 8M, double-sided

• Dual-sided tooth engagement enables synchronous operation on both sides—ideal for reverse and bidirectional drives
• Maintenance-free performance with low noise and no lubrication required
• Fiberglass cord reinforcement provides high tensile strength and dimensional stability
• Neoprene construction with nylon-facing teeth offers excellent wear resistance
• Complies with ISO 5296 standards and meets RoHS and REACH regulations
• Wide operating temperature range suitable for industrial environments

• Conveyor systems
• Packaging and printing machinery
• Robotics and automated handling equipment
• CNC machines and labeling systems
• Pumps, compressors, and reverse-direction belt drives
• Lawn tractors and ride-on mowers

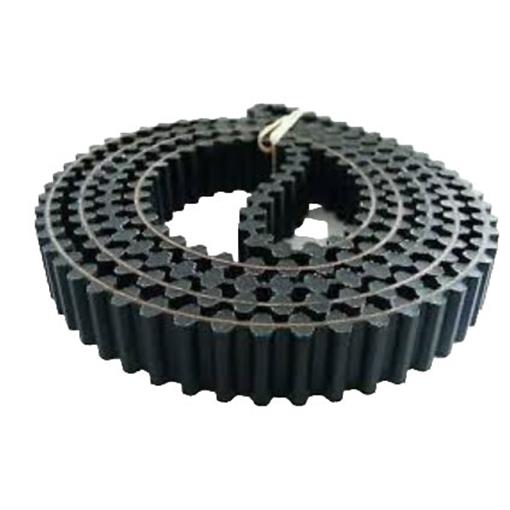

1600-8M-20 Double Sided HTD Timing Belt

Name: 1600-8M-20 Double Sided HTD Timing Belt
Brand: My Store
Price: 36.00 EUR
Availability: InStock

€36,00 EUR

Sale Contact us to order

VAT Included. Shipping calculated at checkout.
